Laboratory equipment

For the mechanical comminution and classification of solid materials a number of different machines are available for various purposes. They can be used for fundamental studies or as part of process chains and are also applied for sample preparation prior to material analysis.

© Fraunhofer Project Group IWKS

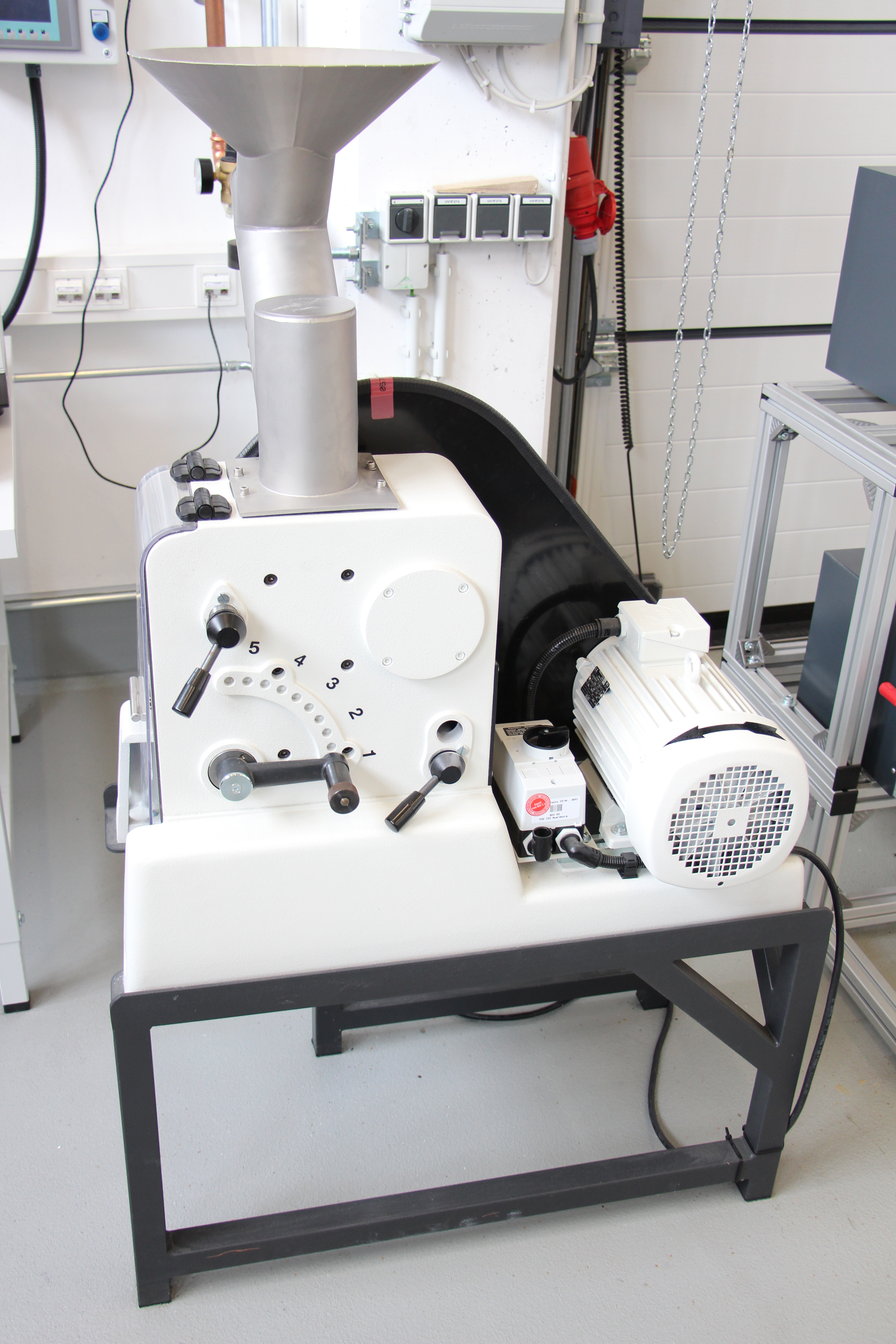

Jaw Crusher



PULVERISETTE 1, Fritsch



Areas of application:

Pre-crushing of very hard, hard, medium-hard, brittle materials, and abrasive materials; metal-free grinding is possible



Min. feed quantity: 20 ml



Max. throughput: 140 kg/h



Max. feed size: approx. 60 mm



Final fineness: 1 – 15 mm

© Fraunhofer Project Group IWKS

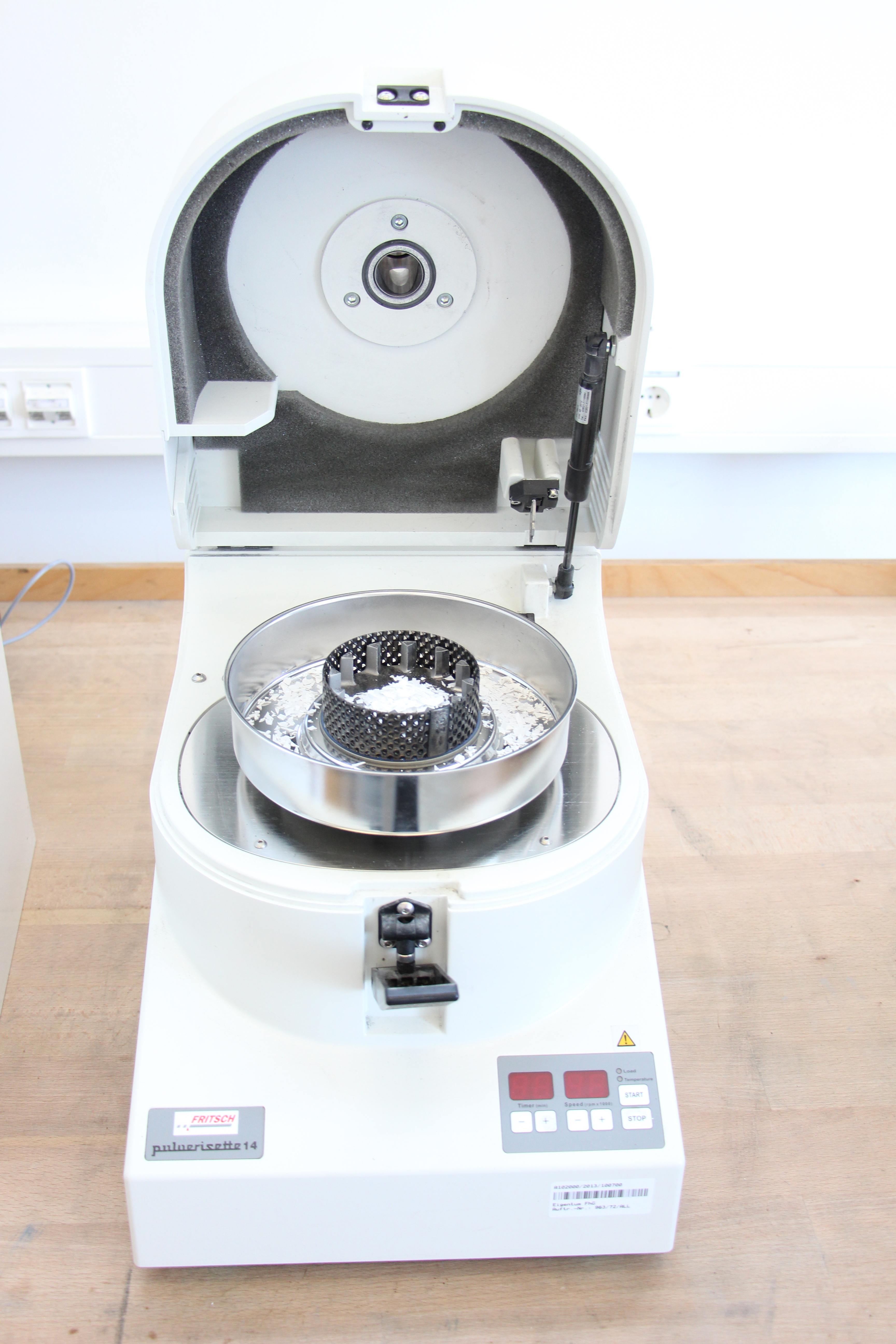

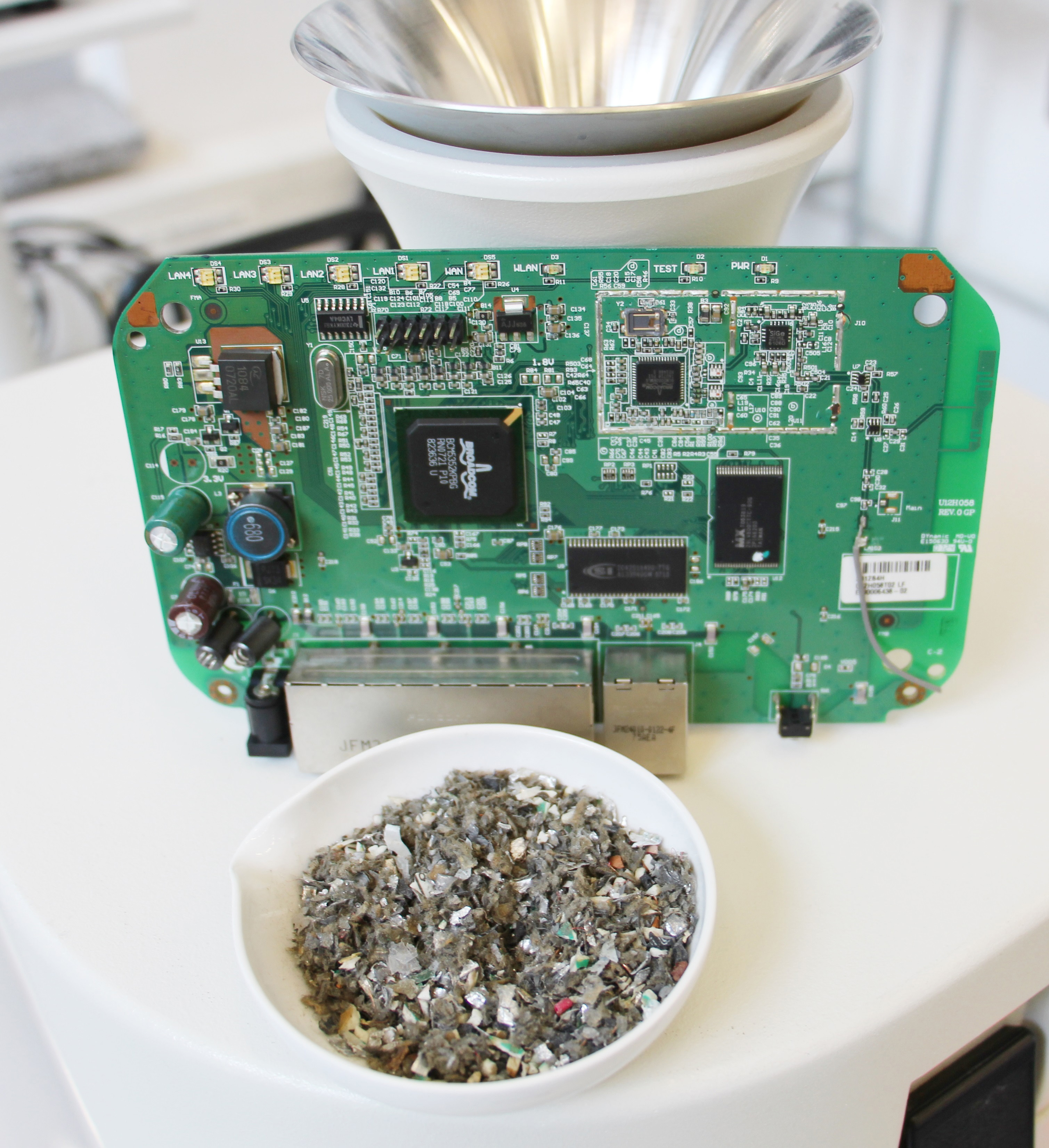

Speed Rotor Mill



PULVERISETTE 14, Fritsch

Areas of application:

Fine grinding of soft, medium-hard, brittle, fibrous, and temperature-sensitive materials



Min. feed quantity: 10 ml



Max. throughput: 5 l/h



Max. feed size: approx. 10 mm



Final fineness: 0,08 – 6 mm

© Fraunhofer Project Group IWKS

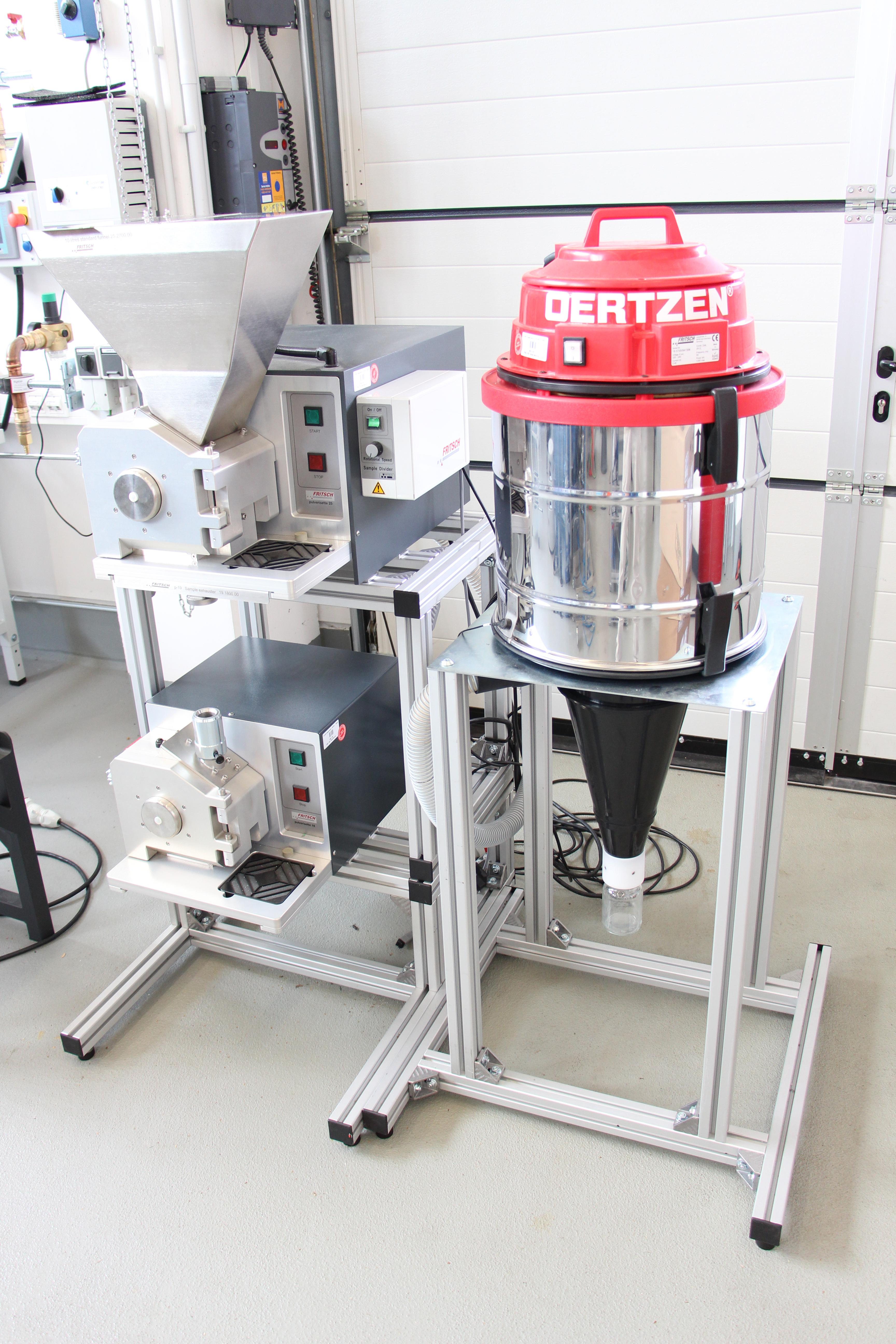

Cutting Mill Combination with Cyclone Separator



PULVERISETTE 25/19, Fritsch

Areas of application:

One or two stage cutting of soft, medium-hard, brittle, tough, and fibrous materials



Max. throughput: 60 l/h



Max. feed size: approx. 120 x 85 mm



Final fineness: 0,2 – 10 mm

© Fraunhofer Project Group IWKS

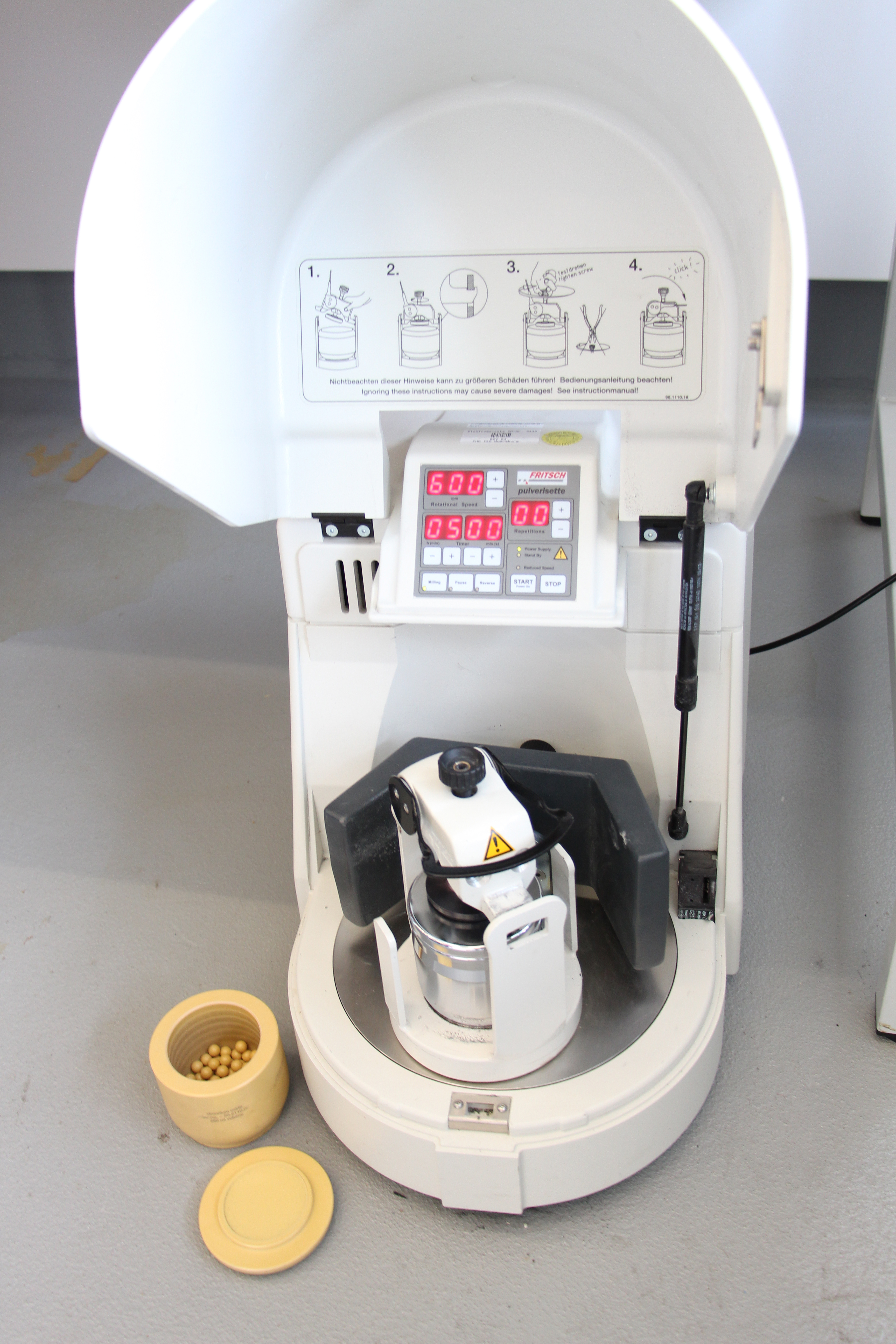

Planetary Ball Mill



PULVERISETTE 6, Fritsch

Areas of application:

Finest grinding of hard, medium-hard, soft, brittle, tough, and moist materials as well as mechanical alloying, mixing, and homogenisation



Feed quantity: 10 – 225 ml



Max. feed size: approx. 10 mm



Final fineness: < 1 µm (wet grinding)

© Fraunhofer Project Group IWKS

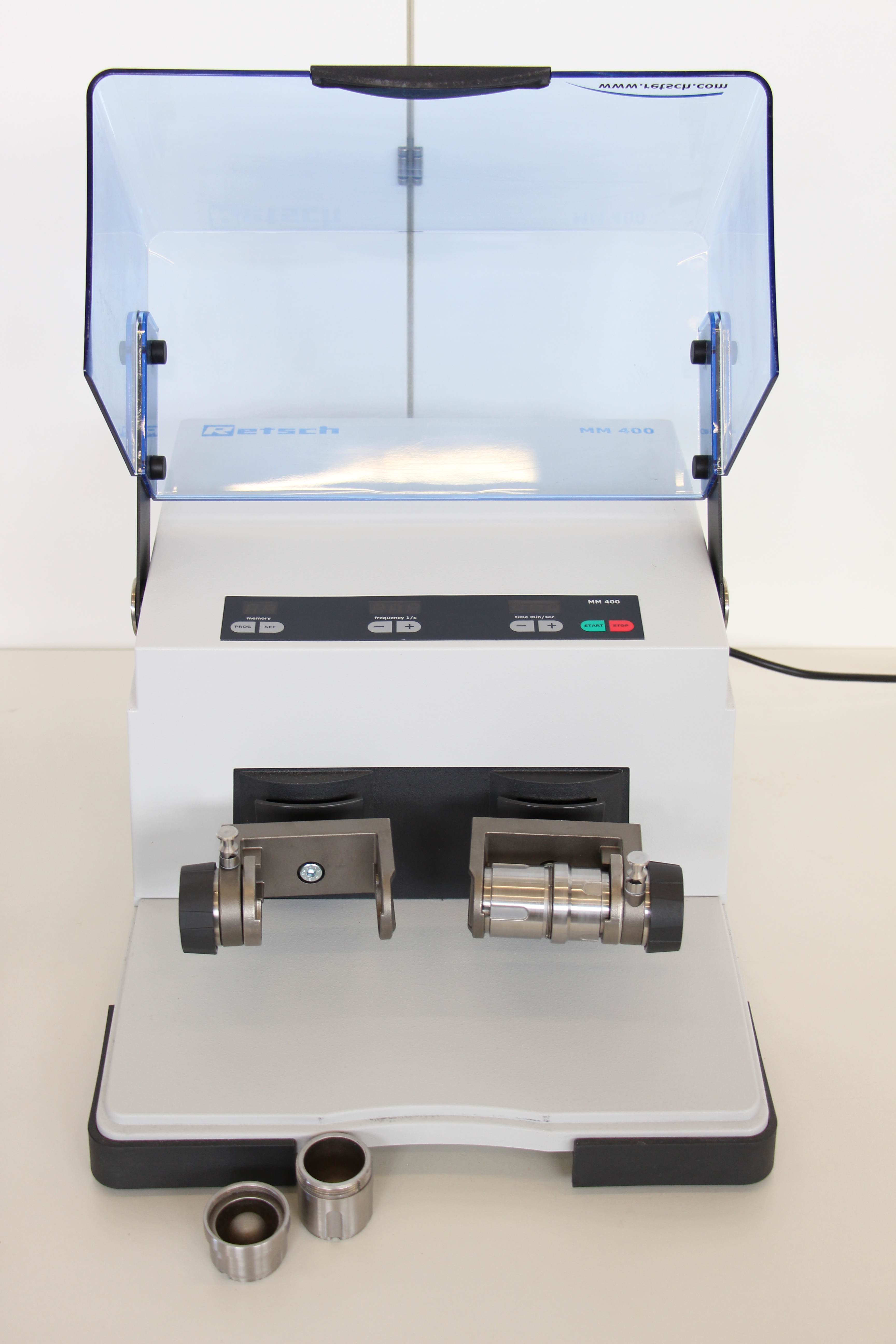

Mixer Mill



MM 400, Retsch

Areas of application:

Dry, wet or cryogenic milling of hard, medium-hard, soft, brittle, elastic, and fibrous materials as well as mixing and homogenisation



Max. feed quantity: 2 x 20 ml



Max. feed size: approx. 8 mm



Final fineness: approx. 5 µm

© Fraunhofer Project Group IWKS

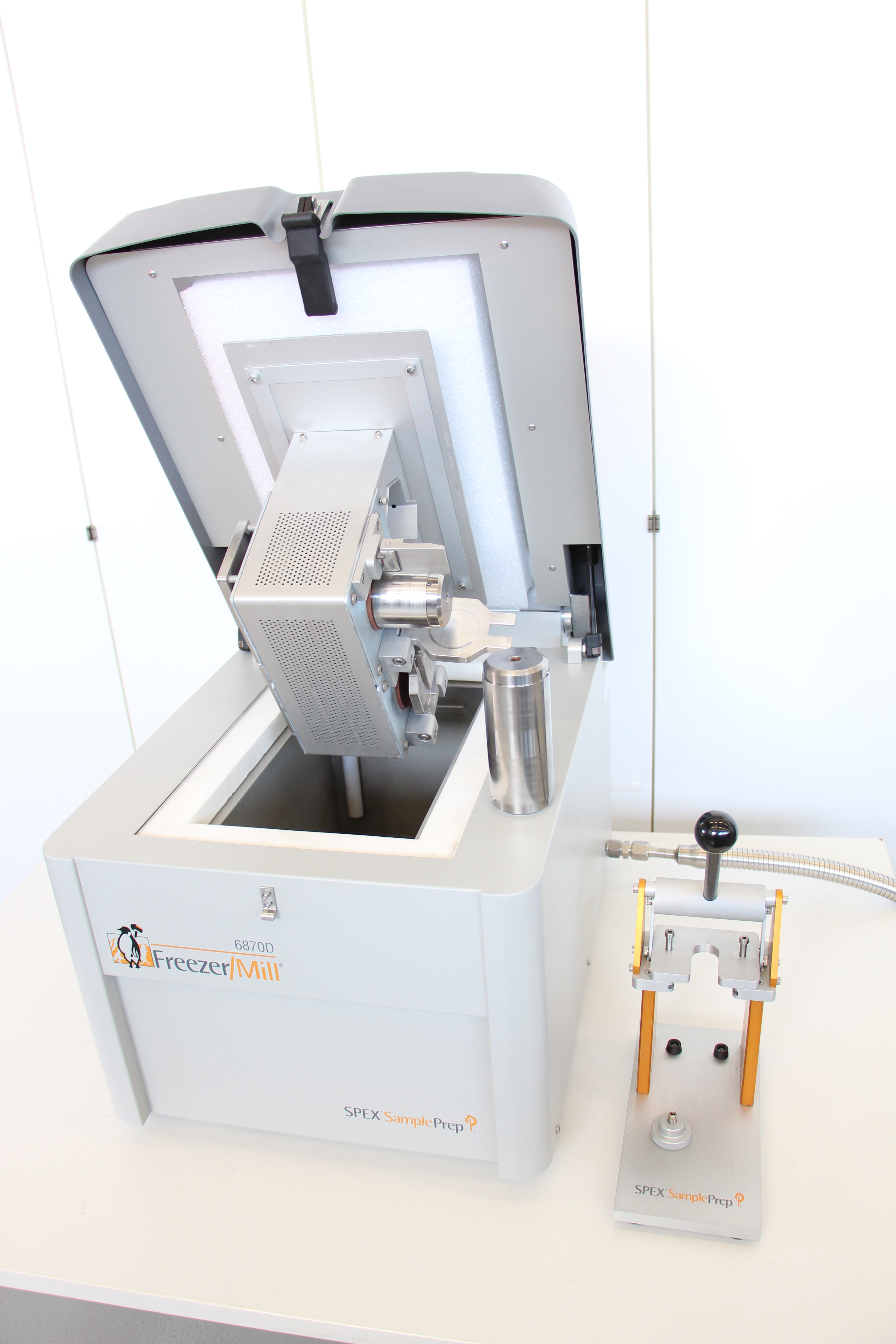

Cryogenic Mill



6870D Freezer/Mill®, SPEX® SamplePrep

Areas of application:

Grinding and pulverisation of soft, flexible, tough, elastic, and temperature-sensitive materials



Grinding temperature: -196 °C (liquid nitrogen)



Feed quantity: 0,1 – 200 g



Max. feed size: approx. 25 mm



Final fineness: depending on grinding time and material

© Fraunhofer Project Group IWKS

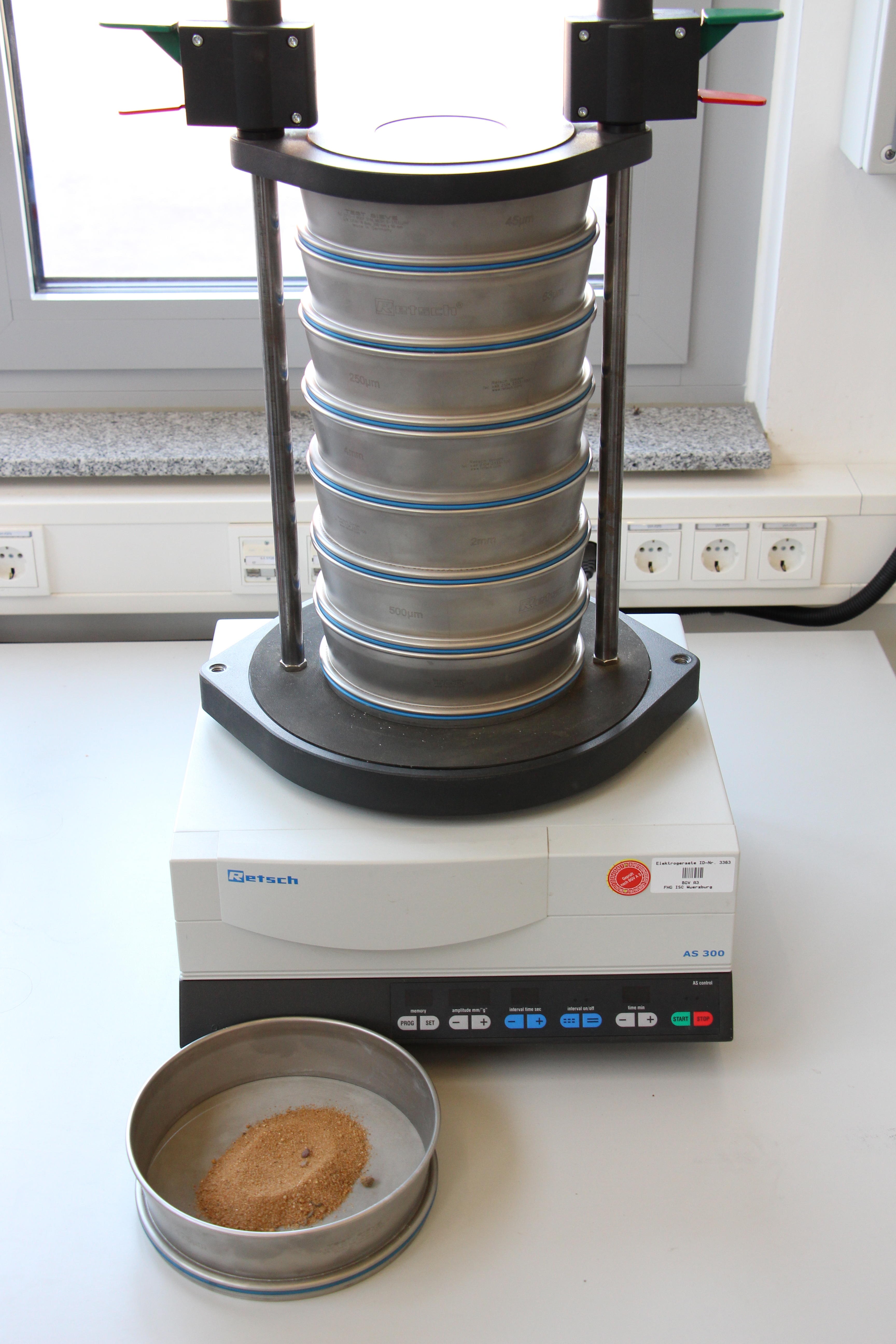

Vibratory Sieve Shaker



AS 300 control, Retsch

Areas of application:

Separation, fractioning, and particle size determination of powders, bulk materials, and suspensions



Max. feed quantity: 6 kg



Max. sieve diameter: 315 mm



Max. number of fractions: 9 or 17



Mesh range: 20 µm – 40 mm

© Fraunhofer Project Group IWKS

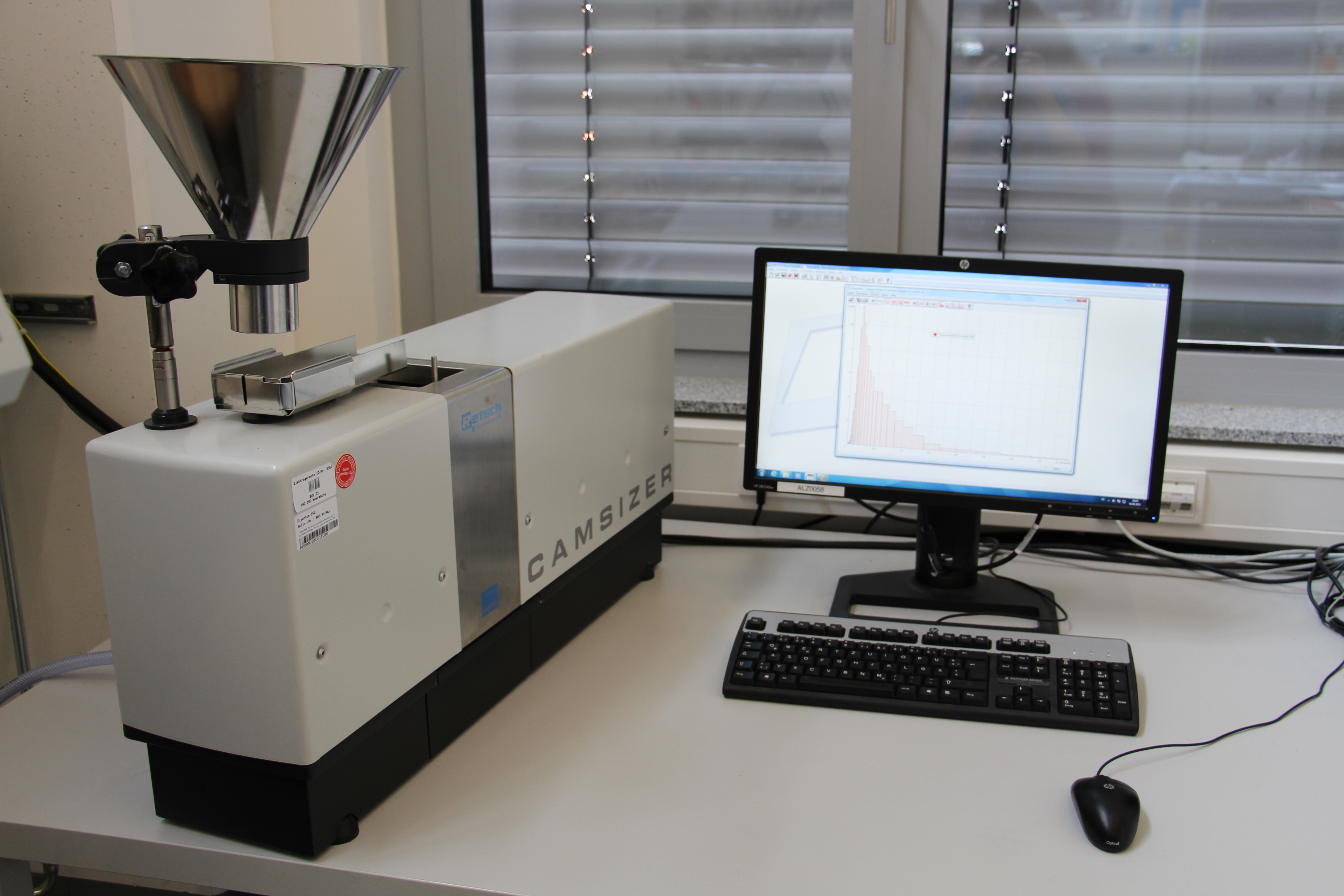

Optical Particle Size Analysis



CAMSIZER®, Retsch Technology

Areas of application:

Optical determination of particle size and particle shape distributions of powders, granulates and bulk materials



Feed material: dry and free-flowing



Range of measurement: 30 µm – 30 mm

© Fraunhofer Project Group IWKS

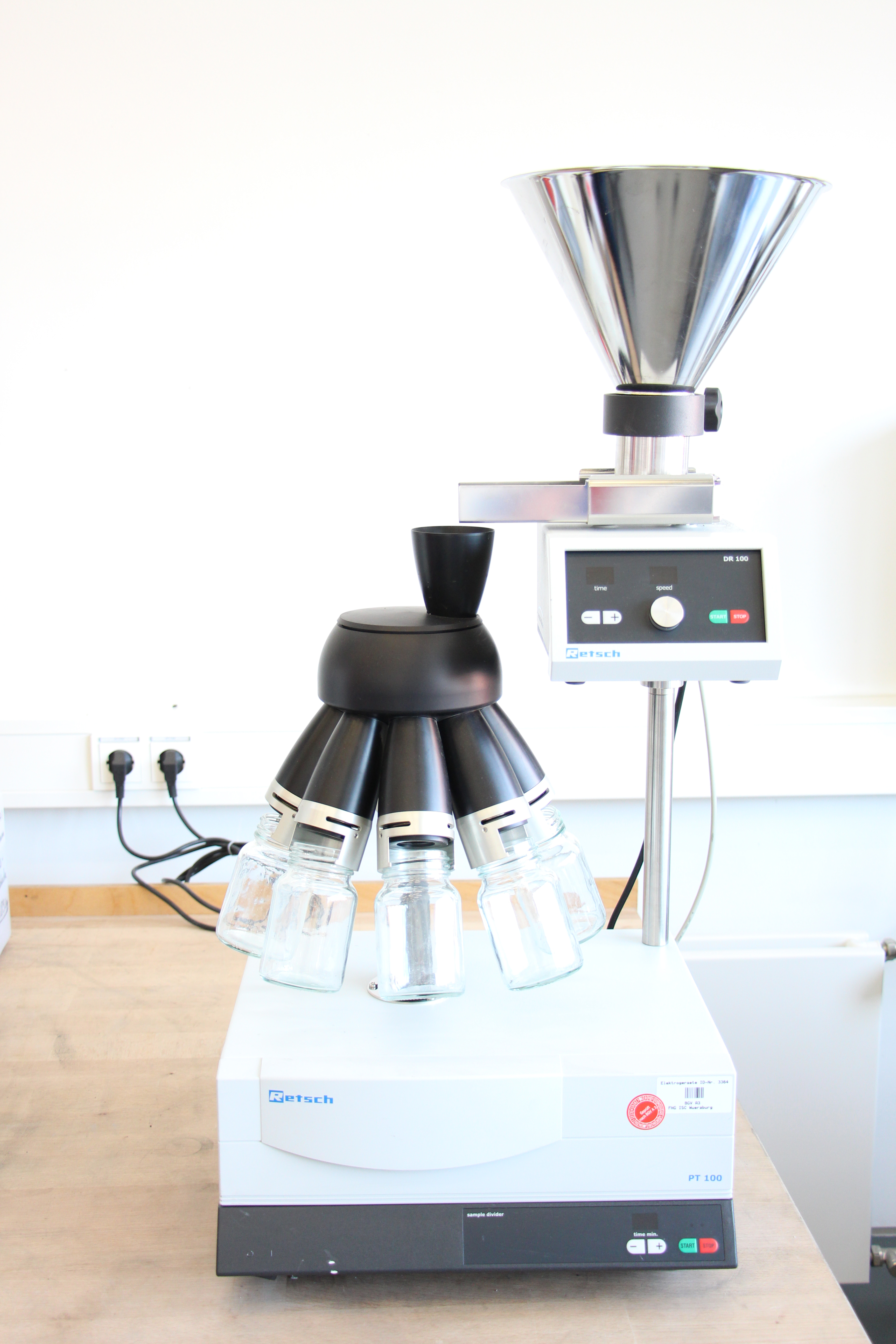

Rotating Sample Divider



PT 100, Retsch

Areas of application:

Representative sampling and sample reduction of bulk materials



Max. feed quantity: 5000 ml



Max. feed size: 10 mm



Number of partial quantities: 8
